Strainers
Y-type, basket and pot type. Mesh to specification.
ANSI B16.5 / B16.1BS 10 Table D/FPN-16 / PN-40
Size range
25–900 NB (1"–36")
Pressure class
125#–600# · PN16 · PN40
End connections
Flange End · Screwed End · Socket Welded
Built for the job
01
Free-flow area at least three times the inlet pipe's cross-section, for low pressure drop.
02
Bolted body and cover with a removable filtering screen element for easy cleaning.
03
Wire-mesh liners sized to the application; fabricated strainers available on request.
04
Drain plug on larger sizes to clear accumulated foreign particles.
05
Flange End, Screwed End (BSP/BSPT/NPT) or Socket Welded end connections.
06
Optional lifting-hook arrangement and vent design.
Specification matrix
Size range
25–900 NB (1"–36")
Pressure class
125#–600# · PN16 · PN40
End connections
Flange End · Screwed End · Socket Welded
Standards & codes
ANSI B16.5 / B16.1 · BS 10 Table D/F · PN-16 / PN-40
Body
CI · WCB · CF8 · CF8M
Where it's used
Petrochemical · Pharmaceutical · Oil & Gas · Power · Steel · Paper · Cement
Technical drawings
Fig. 07.1
Cutaway with part callouts
Fig. 07.2

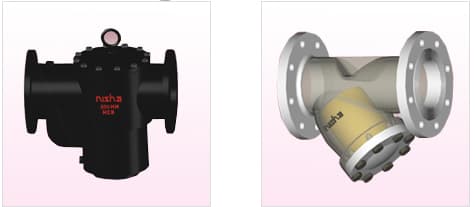

Available configurations
