Globe Valves
Throttling service, renewable seats, bolted bonnet.
Size range
15–400 NB
Pressure class
150#–2500#
End connections
Flange End · Butt Welded
Built for the job
Regulating, guided and soft-seated plugs available for precise flow control.
Close-fitting male/female joint keeps the gasket centred through pressure cycling.
Renewable, seal-welded seat ring, or integral seat in cast stainless.
Angle and Y-type body patterns available alongside the standard globe pattern.
Die-formed graphite packing for guaranteed low fugitive emissions.
Extended bonnet for cryogenic service; gear, electric or pneumatic actuation on request.
Specification matrix
Technical drawings

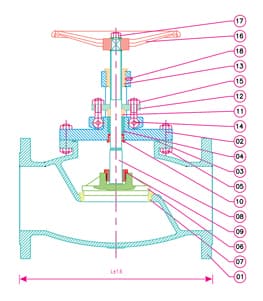

Cutaway with part callouts

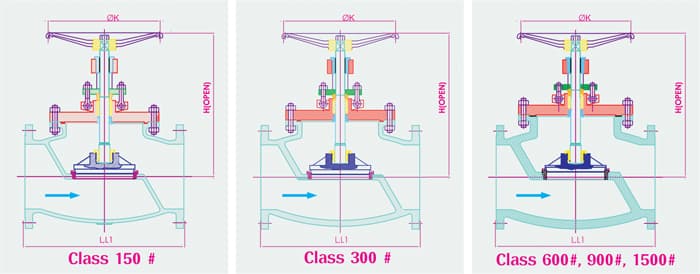

Class 150# / 300# / 600#-1500# — body comparison

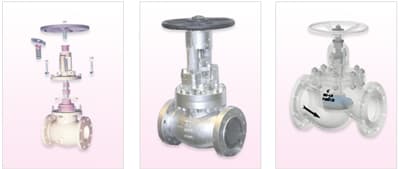

Available configurations
